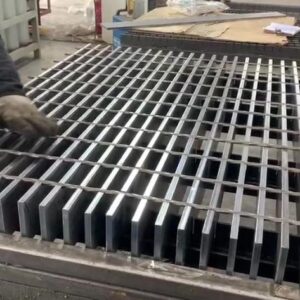

For heavy duty steel grating, the safe choice starts with the drawing, support span, load requirement and installation method. For buyers checking load capacity and support span, that means checking the product, drawing and order details before prices are compared.
The main decision is whether the bearing bar size and clear span can handle the service load with a safe deflection level. If you need the product range first, start from the Heavy Duty Steel Grating page, then use the points below to make the inquiry clearer.
In RFQs and supplier emails, this topic can also appear as heavy duty bar grating, load bearing grating and industrial grating. Use the wording that matches the drawing, then add the site condition so the supplier understands the real use.
When heavy duty steel grating is a good fit
This option is usually considered for load-bearing areas where panel depth, bar thickness and support spacing drive the selection. The exact choice depends on support span, traffic, corrosion exposure, drainage, walking surface and how the panels will be fixed on site.
- Equipment platforms
- Vehicle or trolley areas
- Long-span openings
- Power plant floors
- Heavy maintenance zones
Details to confirm before requesting a quote
A supplier can quote faster when the inquiry shows what the grating must do. If any item is missing, the supplier may assume a lighter panel, a different finish or a simpler fabrication scope.
| Item | What to send | Why it matters |
|---|---|---|
| Panel size | Width, length and quantity for each item | Prevents price changes caused by cutting and layout revisions |
| Bearing bar | Depth, thickness and direction on the drawing | Controls load capacity and how the panel sits on supports |
| Spacing | Bearing bar spacing and cross bar pitch | Affects open area, walking feel, drainage and weight |
| Surface | Plain or serrated top surface | Changes slip resistance in wet, oily or dusty areas |
| Finish | Black, painted, hot-dip galvanized or stainless steel | Controls corrosion resistance and final cost |
How buyers compare the options
Send the clear span, expected load, bearing bar direction and support drawing. Without these details, suppliers may quote different structures.
For export orders, also check packing, bundle weight, shipping marks and whether panel numbers match the drawing. This is especially useful when the site team needs to install many different panel sizes in a short time.
How the site condition changes the choice
Load-bearing grating should be selected from the actual clear span, not from panel size alone. The bearing bars must run in the correct direction between supports.
If carts, equipment, forklifts or heavy maintenance loads may cross the area, tell the supplier before the quote is prepared.
Common mistakes to avoid
Do not use a lighter panel just because the opening size is the same. Span and load decide the safe grating size.
- Span longer than assumed
- Load table read in the wrong direction
- Deflection ignored
- Support detail missing
- Panel weight underestimated
Before you send the inquiry
Prepare a simple list with panel size, quantity, material, surface finish, loading condition, drawings and destination. If drawings are not ready, send a sketch or site photo first. A clear first inquiry saves time for both the buyer and the factory.
- Which load table or span assumption was used for the quote?
- Is the finish included after all cutting, welding and banding work?
- How will different panel sizes be marked and packed?
- Which clips, bolts or welding details are included in the offer?
Related steel grating pages
- Heavy Duty Steel Grating
- Bar Grating
- Steel Grating Load Tables
- Steel Grating
- Steel Grating Supplier
- Request a Quote
FAQ
What should I send for a heavy duty steel grating quote?
Send drawings or sizes, bearing bar direction, load requirement, material, finish, quantity, destination and any installation notes.
How can I compare two supplier prices fairly?
Make sure both prices use the same bar size, spacing, material, finish, fabrication scope, packing and delivery terms.
When should I ask for drawing review?
Ask for drawing review before production if the order includes several panel sizes, cut-outs, stair treads, frames or special fixing details.
